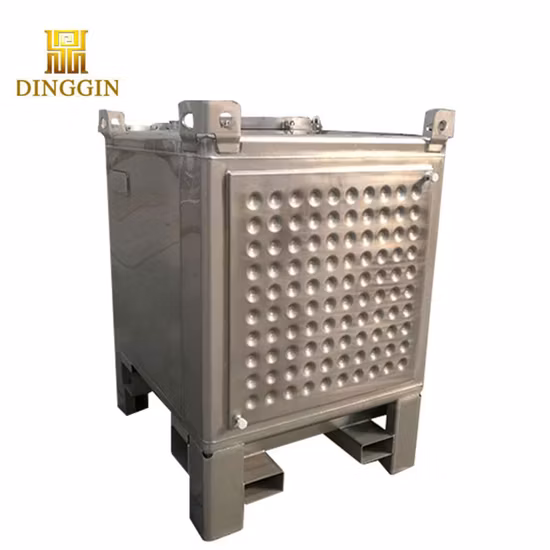

Folded Solid Chemical Storage IBC Tank

Basic Info

Outlet Valve	Dn45/Dn50
Dimension	1150*1150*1135mm
Manhole Diameter	395mm/450mm

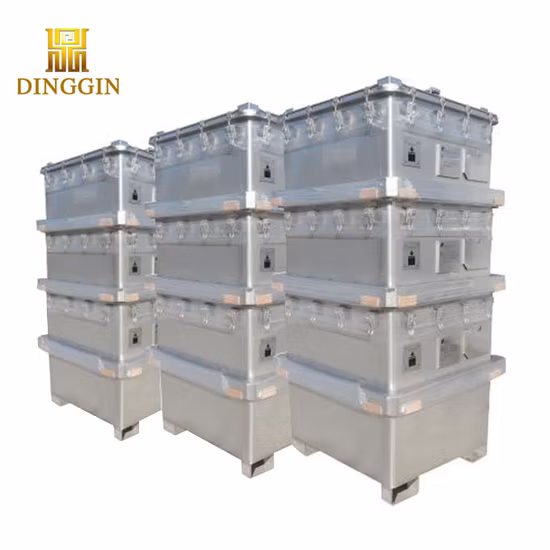

Stacking in Warehouse	3 Layers
Transport Package	Stretch Film
Specification	1150*1150*1135mm
Trademark	DINGGIN
Origin	China
HS Code	8609009000
Production Capacity	50 Units Per Month

Product Description

Folded solid chemical storage IBC tank

Detailed information:

Product name: Stainless steel oil tanks with UN approval

1. EPDM/PTFE/silicon rubber gasket available
2. Material: Ss304/ss316l
3. Capacity: 500L-2000L
4. Single seam welding
5. OEM or ODM acceptable
6. ISO9001, UN approval from CCS/BV
7. Delivery time: 4 weeks based on order quantity within 150 units.
8 Design- IMDG 2008\ d We are the manufacture more than 10 years experience
9. Quality control following ISO9001
10 Specially design for the lines of oil, chemical, pharmacy and food industries.
11. Matching with all kinds of standard functional parts
12. Suitable for liquid hazardous goods of density less than or equal to 0.8 of the un 5.2 group
13. By now we have expoxted to the USA, Finland, Norway, Singapore, Malaysia, etc.

Why choose Dinggin Ibc:
A more safe: It is the most convenient way for load, transporation and storage
B more economical: It can help you to save a lot of transportation cost
C more protecting the environment
D more professional: It is your first choice for liquid object and small amount product transportation.

SPECIFICATIONS
	Dimensions	MM
External	Length	1150
	Width	1150
	Height	1135
Fork Pocket Height		78mm
Shell Wall Thickness		2.5mm
Manhole Diameter		450mm
Outlet Valve		DN50
Capacity		1000L
Max.Mass Weight		2770kg
Tare Weight (nominal)		170KG
Stacking Capacity (in warehouse)		3 high
Stacking Capacity (in transport)		1 high
SPECIAL FEATURES
* Approval: UN31A/Y-IMDG
* Shell wall material: SUS304/SS316L
* Sealing material: silicon rubber
* Outlet valve: 2 Piece Ball Valve
* Relief Valve: Pressure Setting 0.21Bar
* Container Loading: 40unit/40GP
*Loading Goods: Suitable for liquid, polished inside.
